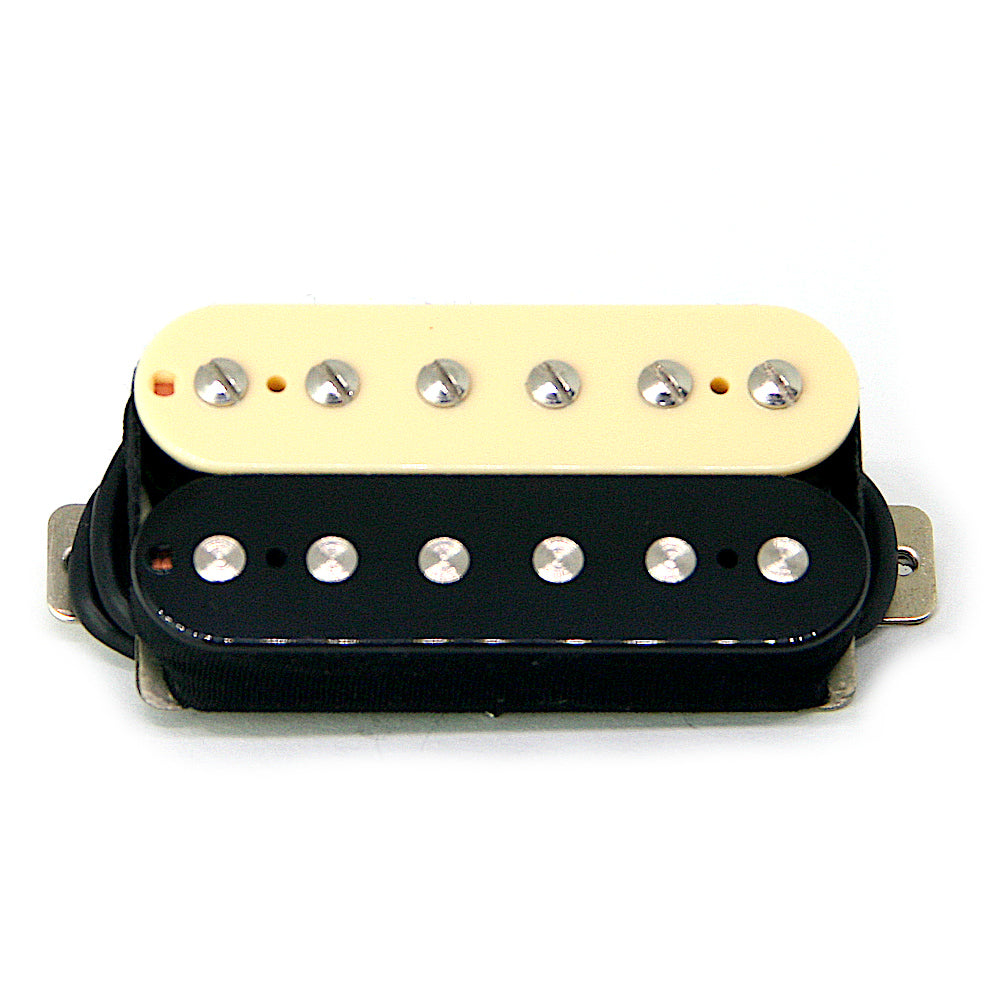

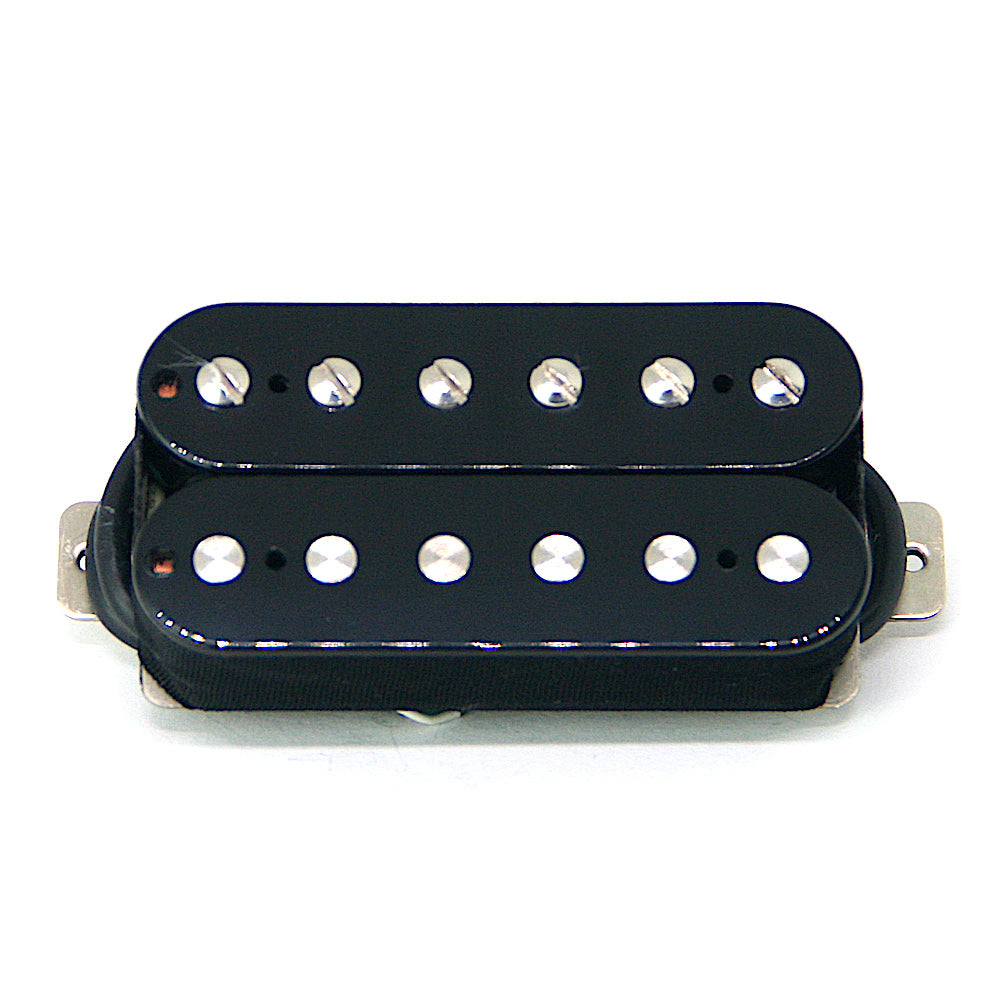

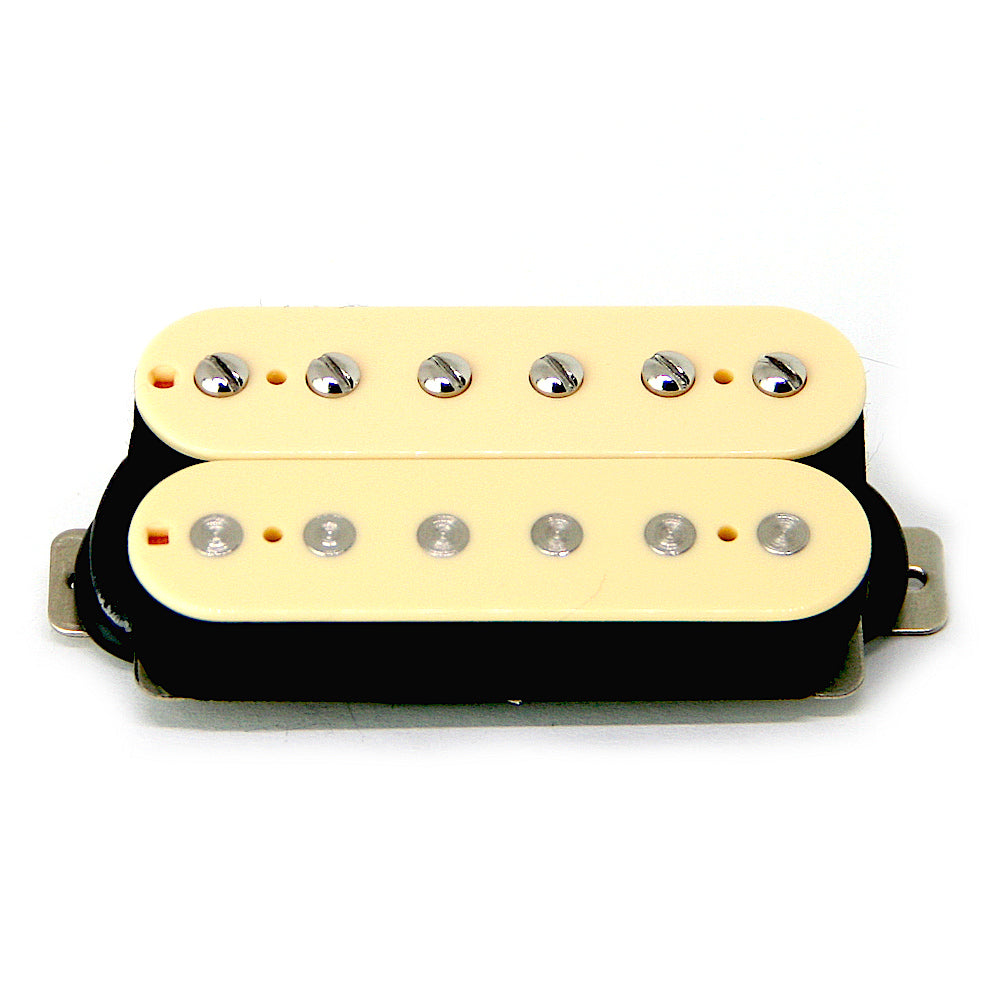

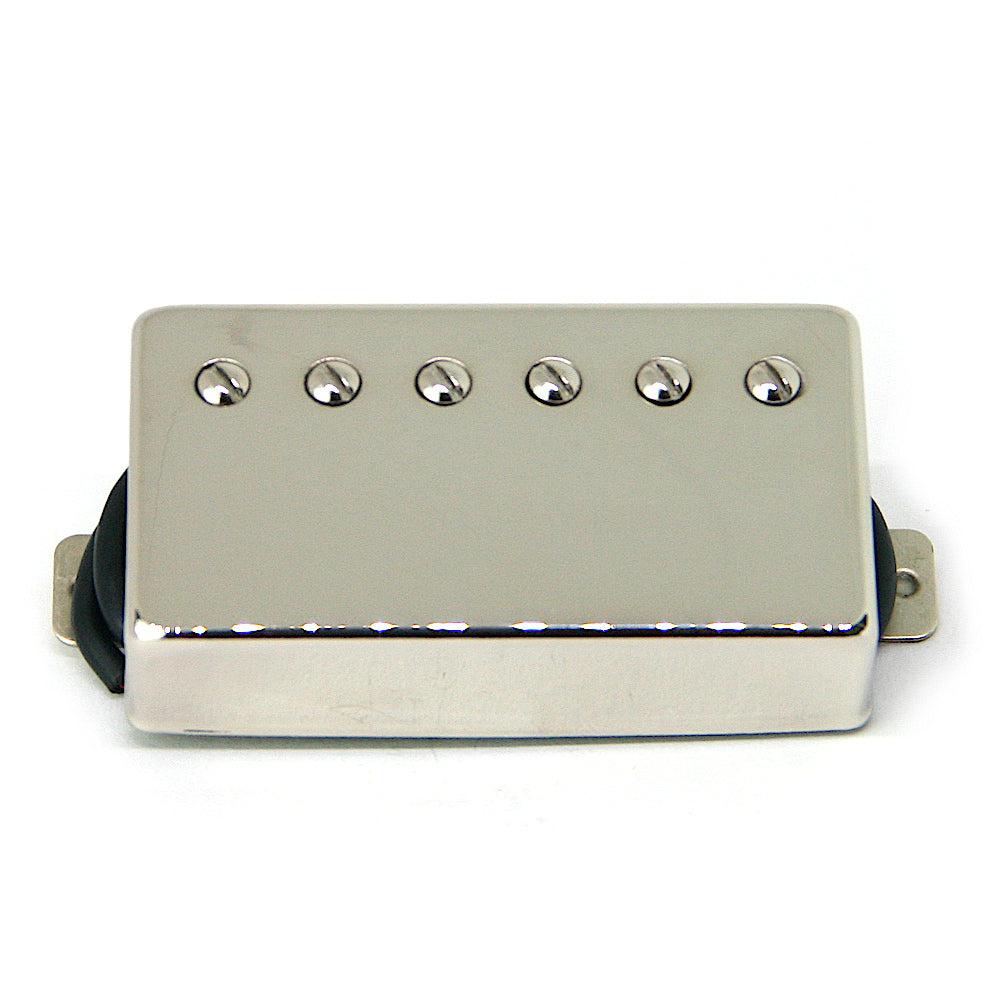

Tapped humbucker bridge pickup

Discover tonal flexibility with our high-quality, handmade tapped humbucker bridge pickup. Combining regular and high output in one design, it delivers classic warmth or boosted power at your command. Perfect for dynamic playing styles, this pickup enhances your guitar’s sound with rich tone, clarity, and precision-crafted performance.

SPECIFICATION

POLE SPACING: 52mm
DC RESISTANCE: 8.4/11.0 kΩ
COIL WIRE: 43-AWG
WINDING: Scatter Wound
POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
BASEPLATE: Short Leg (1/4") Nickel Plated
MOUNTING SCREWS AND SPRINGS: Included (30mm)
HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)

* DC Resistance and inductance can differ within 5%.
** For series wiring, connect WHITE and GREEN wires.
