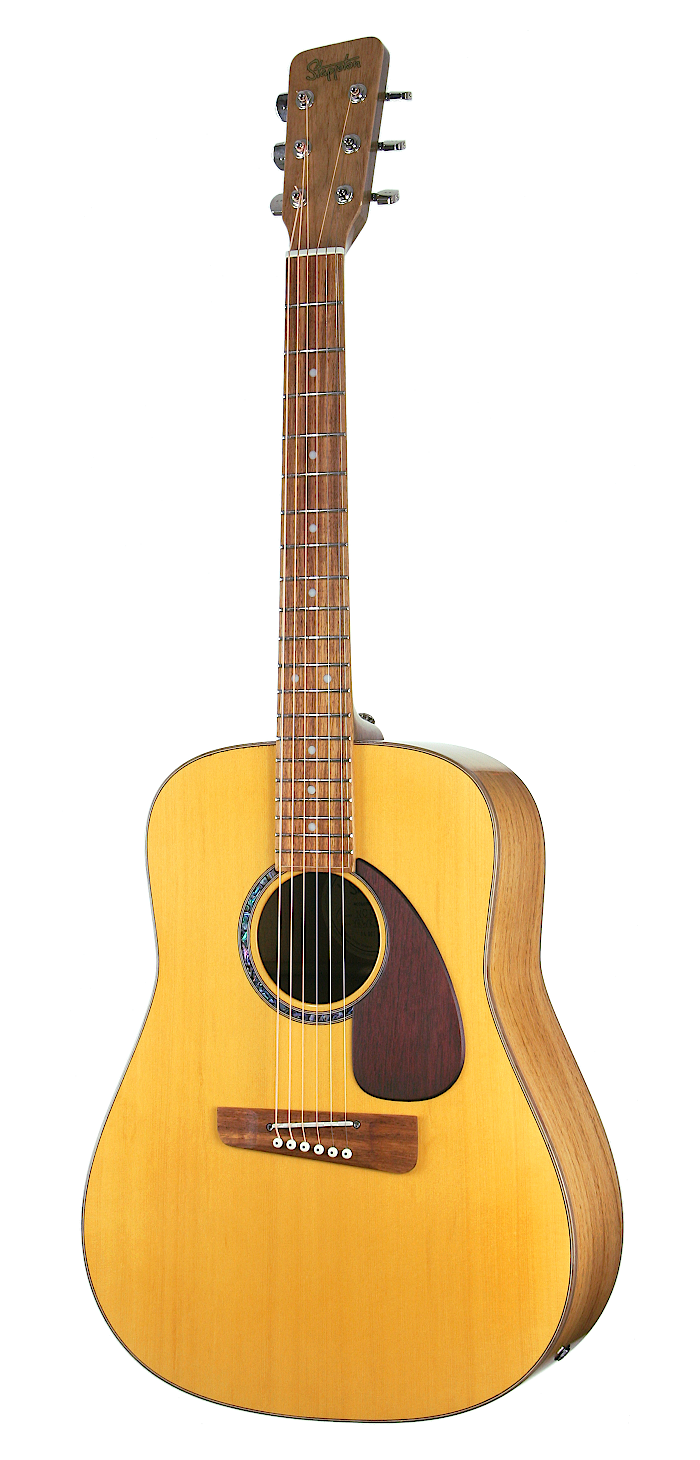

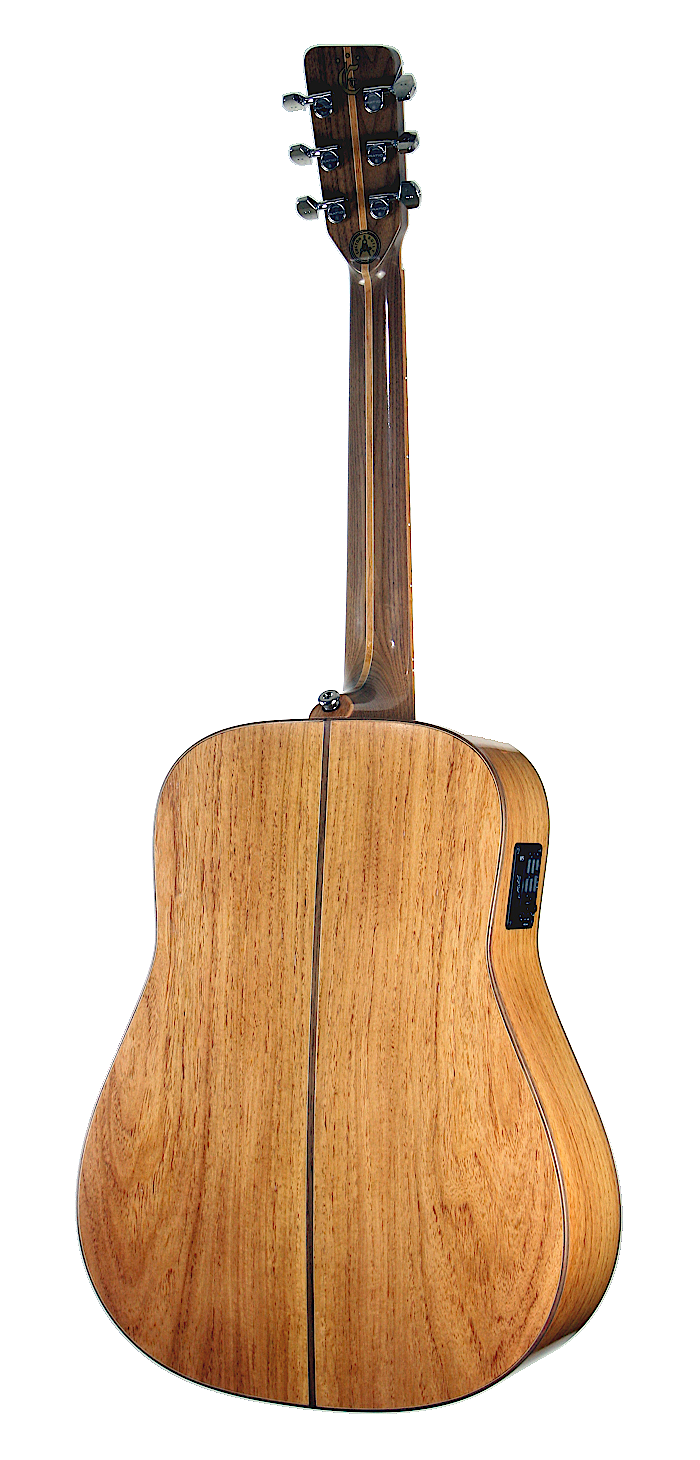

NORA™ Alaskan yellow cedar soundboard, rosewood body, black walnut neck.
NORA™ Alaskan yellow cedar soundboard, rosewood body, black walnut neck.
  • Load image into Gallery viewer, NORA™ Alaskan yellow cedar soundboard, rosewood body, black walnut neck.
  • Load image into Gallery viewer, NORA™ Alaskan yellow cedar soundboard, rosewood body, black walnut neck.

NORA™ Alaskan yellow cedar soundboard, rosewood body, black walnut neck.

Specification

NECK

  • NECK WOOD:Black Walnut
  • NECK FINISH:Gloss Waterbased Clear Polyurethane
  • SCALE LENGTH:25.5 in (648 mm)
  • FRETS:Jescar Stainless Steel .095″ X .047 (2.41 X 1.19 mm)
  • NUMBER OF FRETS:20
  • FINGERBOARD RADIUS:12 in (304.8 mm)
  • TUNERS:Graphtech Ratio Nickel
  • NUT MATERIAL:Graphtech TUSQ
  • NUT WIDTH:45mm
  • FINGERBOARD INLAY:White dots
  • FINGERBOARD WOOD:Rosewood
  • FINGERBOARD BINDING:2-ply Rosewood/Maple
  • SIDE DOTS:White dots
  • HEADSTOCK VENEER:Rosewood
  • HEADSTOCK PURFING:No
  • HEADSTOCK INLAY:No
  • HEADSTOCK SHAPE:Original NORA™
  • HEADSTOCK LOGO:Gold
  • NECK STRIP:3-ply Maple/Rosewood/Maple
  • TRUSS ROD:Double Action
  • HEEL CAP:Rosewood
  • NECK JOINT:Bolt-On
  • NECK JOINS BODY AT:14th fret

BODY

  • SOUNDBOARD WOOD:Alaskan Yellow Cedar
  • BACK AND SIDES WOOD:Rosewood
  • CUTAWAY:No
  • PICKGUARD:Black Walnut
  • BODY FINISH:Gloss Waterbased Clear Polyurethane
  • BRACING:non-Scalloped X-Bracing
  • TOP RADIUS:Flat Top
  • BACK RADIUS:15-foot (4.572m)
  • BACK STRIP:3-ply Maple/Black Walnut/Maple
  • BODY WIDTH:385mm
  • BODY LENGTH:500mm
  • BODY DEPTH:124mm
  • BODY BINDING:3-ply Black Walnut/Maple/Jarrah
  • ROSETTE:Paua - Jarrah/Maple/Jarrah
  • ARMREST:No
  • BRIDGE:Rosewood
  • SADDLE:Graphtech TUSQ Compensated
  • BRIDGE PINS:Graphtech TUSQ Black Dot
  • BRIDGE STRING SPACING:55mm
  • END-GRAFT:Maple/Black Walnut/Maple
  • PICKUP:AP5 expression system, customer supplied

HARDWARE AND MISC

  • STRINGS:Elixir Phosphor Bronze 11/52
  • BAG OR CASE:Hard Case
  • STRAP BUTTONS:Oversized Nickel Plated
