LOW OUTPUT Handmade humbucker pickup set

Regular price
$189.90
Sale price
$189.90
Regular price
$169.90
Sold
Unit price
per
Tax included.

Specification

Humbucker pickup diagram
  • NECK PICKUP POLE SPACING: 50mm (1.97")
  • BRIDGE PICKUP POLE SPACING: 53mm (2.09")
  • NECK PICKUP RESISTANCE: ≈ 7.4 kΩ
  • BRIDGE PICKUP RESISTANCE: ≈ 8.4 kΩ
  • NECK PICKUP INDUCTANCE: ≈ 5.2 Henries
  • BRIDGE PICKUP INDUCTANCE: ≈ 6.5 Henries
  • COIL WIRE: 42-AWG
  • WINDING: Scatter Wound
  • POTTED: Yes
  • POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
  • BASEPLATE: Short Leg (1/4") Nickel Plated
  • MOUNTING SCREWS AND SPRINGS: Included (30mm)

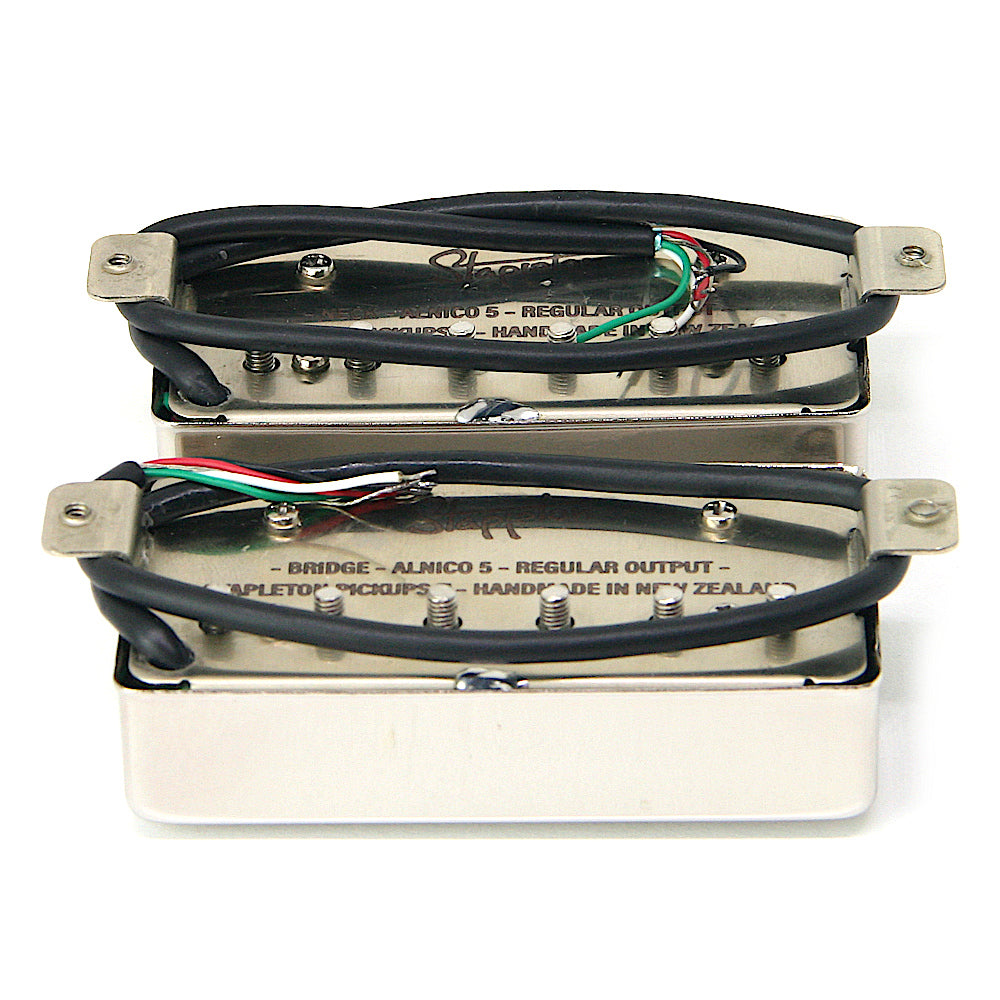

  • NECK HOOK-UP WIRE: Shielded 4-conductor Wire (320mm)
  • BRIDGE HOOK-UP WIRE: Shielded 4-conductor Wire (280mm)

* DC Resistance and inductance can differ within 5%.

** For series wiring, connect WHITE and GREEN wires.







Dimensions

Neck pickup dimensions


Bridge pickup dimensions
