Handwound HSS pickup set

Regular price
$249.90
Sale price
$249.90
Regular price
$198.90
Sold
Unit price
per
Tax included.

Specification

  • Single Coil Neck pickup resistance: ≈ 5.9 kΩ
  • Single Coil Middle pickup resistance: ≈ 6.3 kΩ
  • Humbucker High Output bridge pickup resistance: ≈ 13.6 kΩ
  • Single Coil Neck pickup inductance: ≈ 3.3 Henries
  • Single Coil Middle pickup inductance: ≈ 3.7 Henries
  • Humbucker High Output Bridge pickup inductance: ≈ 6.4 Henries

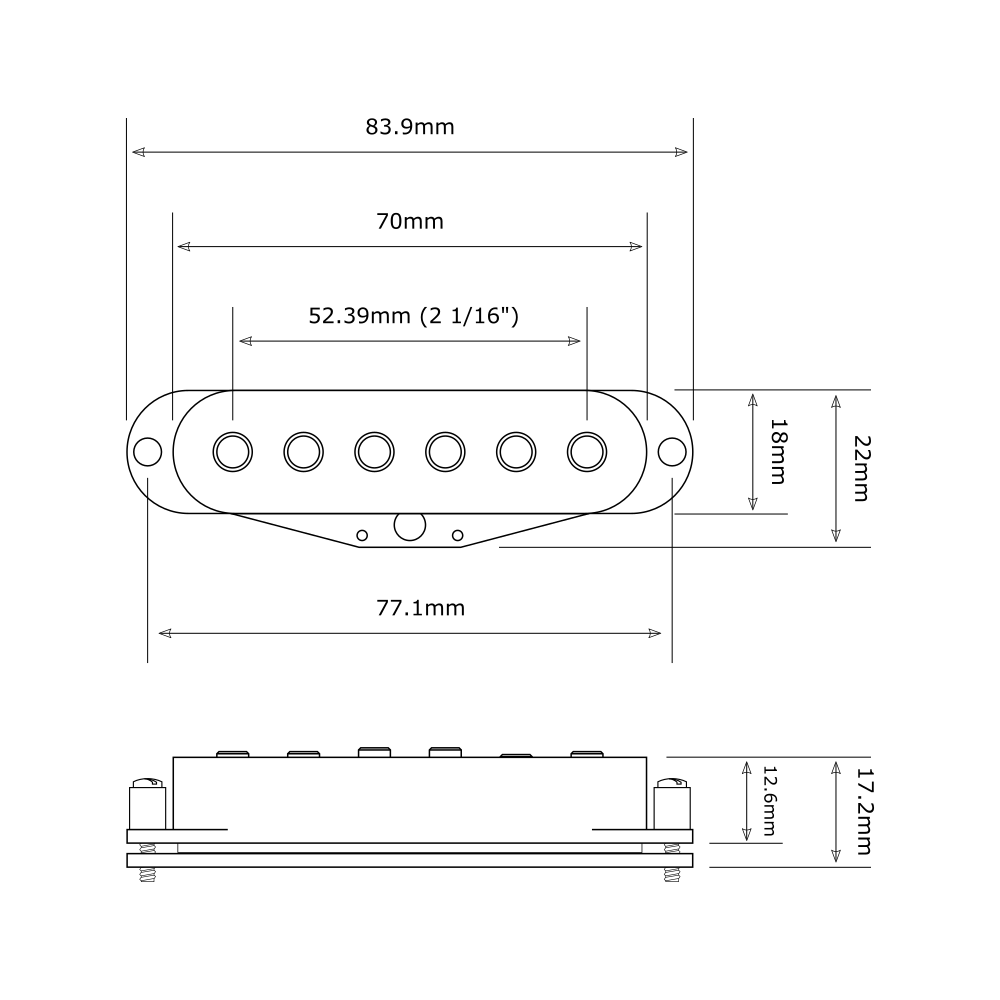

  • Single Coil pickups pole spacing: 52.39mm (2 1/16")

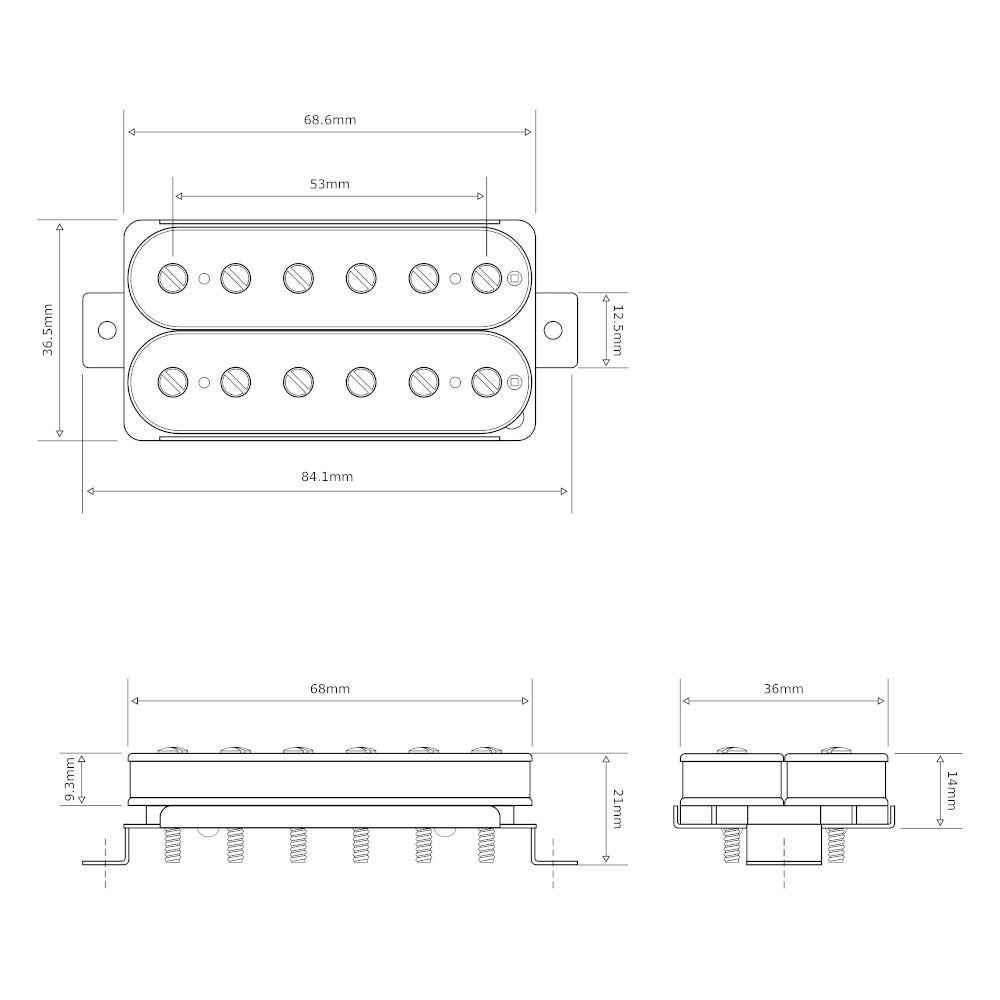

  • Humbucker pickup pole spacing:53mm (2.09")
  • Single Coil pickups coil wire: 42-AWG
  • Humbucker pickup coil wire: 43-AWG
  • Winding: Scatter Wound
  • Potted: Yes
  • Single Coil pickup pole pieces: Vintage Bevel Rod Magnet .187" diameter
  • Humbucker pole pieces:Vintage PAF Fillister Screws Nickel Plated
  • Single Coil pickup Mounting Screws and Springs: Nickel plated screws and silicone tubing

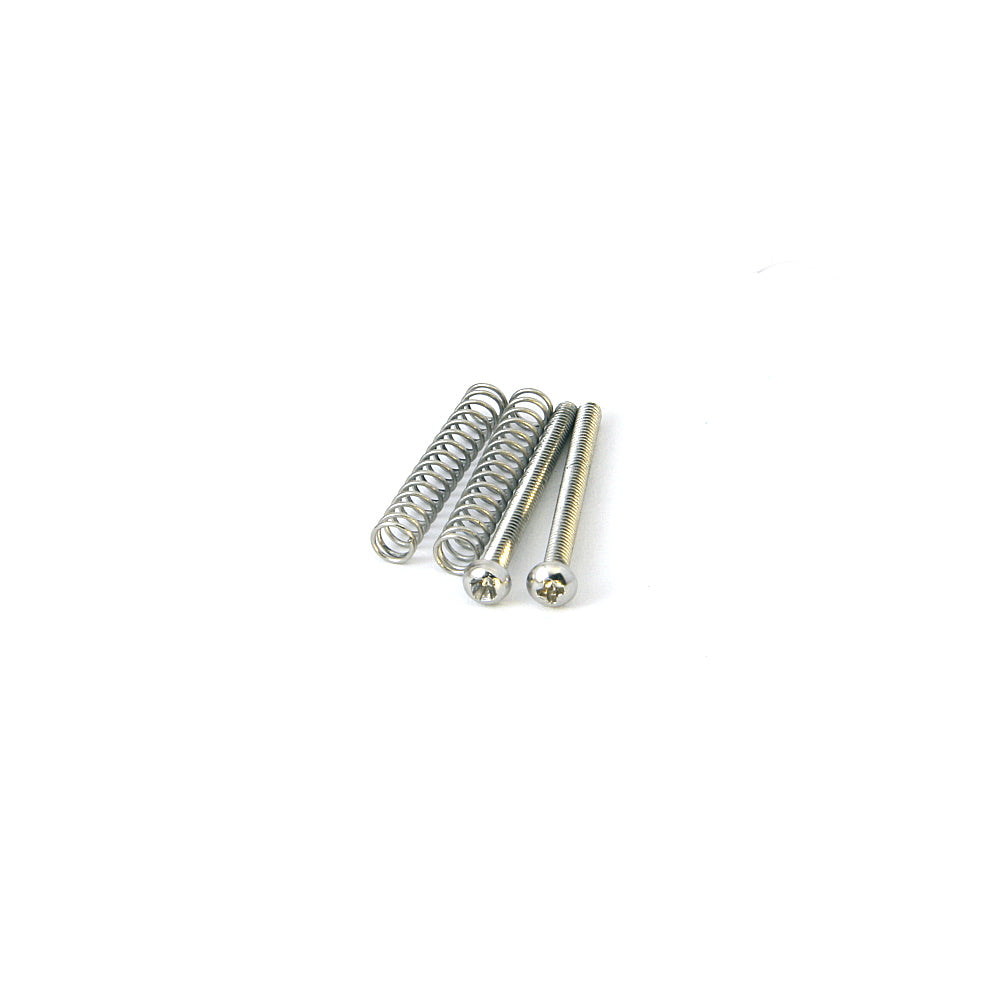

  • Humbucker pickup mounting screws and springs: Included (30mm)
  • Single Coil pickup Hook-Up wire: 25cm pushback cloth wire
  • Humbucker pickup Hook-Up wire: Shielded 4-conductor Wire (280mm)



* DC Resistance and inductance can differ within 5%.

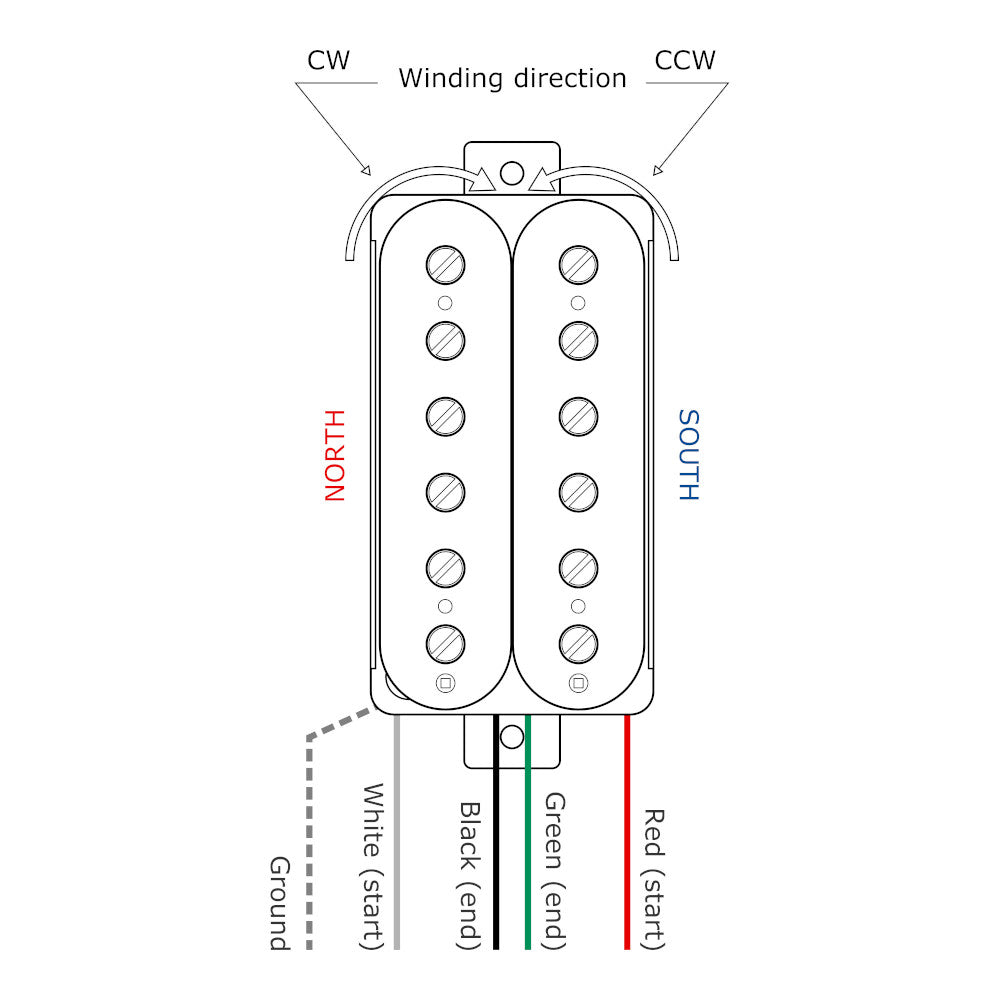

** For humbucker pickup series wiring, connect WHITE and GREEN wires.
