Stapleton Guitars

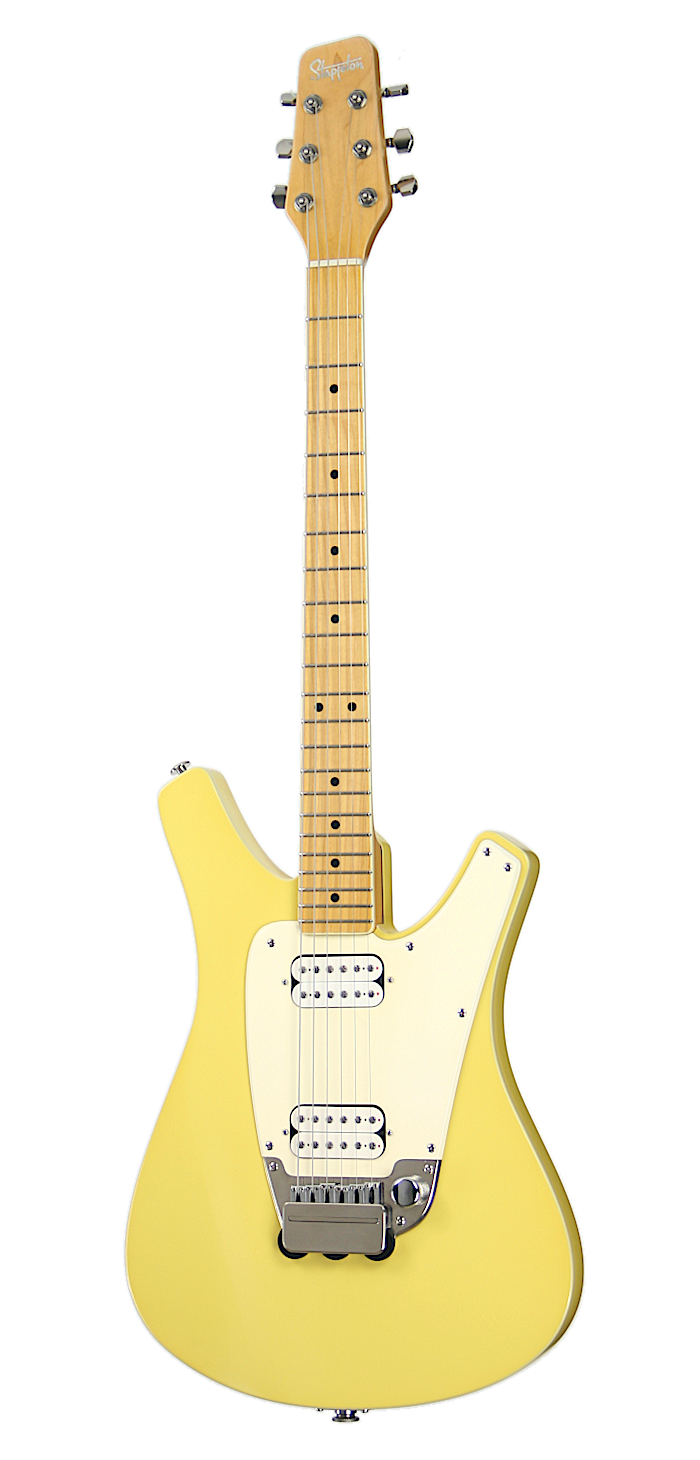

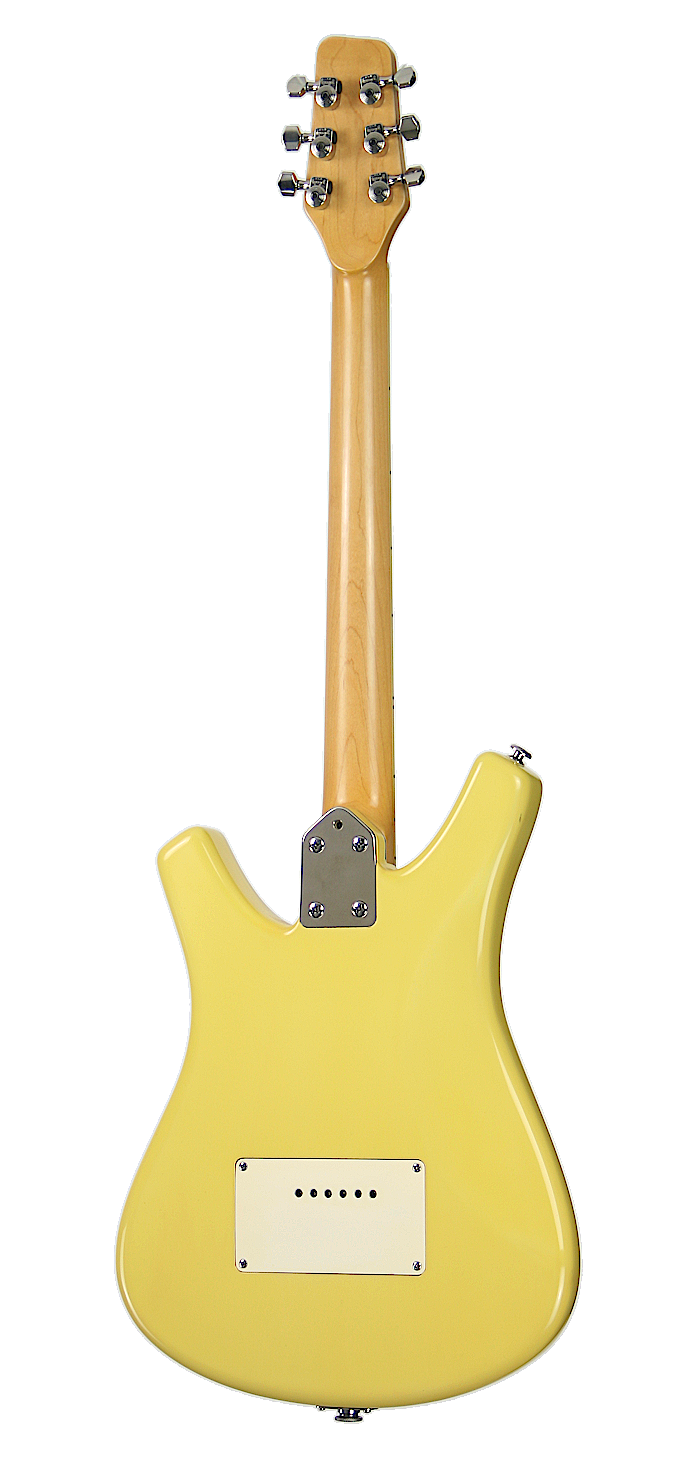

AURORA™ Pastel Yellow - Model 2017

AURORA™ Pastel Yellow - Model 2017

$0.00 NZD
$0.00 NZD
Sale Sold out
Tax included.

This guitar was built in 2017. This is the fourth electric guitar ever made by Stapleton Guitars.

Solid white ash body in pastel yellow colour, semi gloss waterbased clear polyurethane finish. Hard Maple pickguard loaded with handmade overwound aged white humbucker pickups. Maple neck and maple fingerboard with Jescar stainless steel frets.

This guitar features high quality components such as Sperzel Trim-Lok nickel plated tuning machines, Graphtech TUSQ nut and contemporary saddles, and Elixir Nanoweb strings.

Video

Controls

View full details

SPECIFICATION

NECK

NECK WOOD: Hard Maple
NECK BINDING: 1-ply White
NECK STRIP: None
FINGERBOARD WOOD: Hard Maple
FINGERBOARD RADIUS: 9.5 in (241.3mm)
FINGERBOARD INLAYS: Black dots
SIDE DOTS: Black dots
SCALE LENGTH: 25.5 in (648 mm)
NUT MATERIAL: Graphtech TUSQ
NUT WIDTH: 42mm
NUMBER OF FRETS: 22
FRETS MATERIAL: Jescar Stainless Steel .095″ X .047 (2.41 X 1.19 mm)
TUNING MACHINES: Sperzel Trim-Lok Nickel Plated
TRUSS ROD: Double Action
NECK JOINT: Bolt-On
NECK FINICH: Semi Gloss Waterbased Clear Polyurethane
HEADSTOCK SHAPE: Original AURORA
HEADSTOCK VENEER: None
HEADSTOCK LOGO: Silver
HEADSTOCK INLAY: None
HEADSTOCK PURFING: None

BODY

BODY TOP WOOD: None
BODY WOOD: American White Ash
BODY COLOUR: Aged White
BODY WIDTH: 335mm
BODY LENGTH: 445mm
BODY DEPTH: 45mm
BODY BINDING: 1-ply White
BODY FINISH: Semi Gloss Waterbased Clear Polyurethane
BODY STRIP: None
PICKGUARD MATERIAL: Hard Maple
PICKGUARD COLOUR: Aged White
BRIDGE STRING SPACING: 54mm

ELECTRONICS

NECK PICKUP: High output Aged White (50mm) humbucker pickup Alnico 5
BRIDGE PICKUP: High output Aged White (53mm) humbucker pickup Alnico 2
SWITCH: 6 Position Rotary Switch

HARDWARE AND MISC

BRIDGE: Nickel Plated Brass
SADDLES: Contemporary Chrome Plated
VOLUME KNOB: Cupcake Chrome Plated
TONE KNOB: Black Metal Roller Knob
SWITCH KNOB: Black Metal Roller Knob
NECK PLATE: Nickel Plated Brass
JACK PLATE: Curved Rectangular Metal Nickel Plated
STRAP BUTTON: Oversized Nickel Finish
JACK STRAP BUTTON: Endpin Jack Strap Button Stainless
STRINGS: Elixir Nanoweb Light 10/46
BAG OR CASE: No
